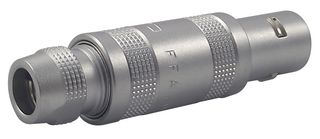

FFA.0S.302.CLAC44

The FFA.0S.302.CLAC44 is a 2-way Circular Connector, 0S series, straight plug with cable collect. Chrome-plated brass shell and collect nut, nickel-plated brass latch sleeve and mid pieces. Push-pull self-latching system with two straight solder contacts. The modular design of the 0S series connector offers a solution for most applications. The push-pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

• 10A Current rating
• PEEK insulator
• IP50 Protection rating
• 5000 Maximum matings
• 4.8mΩ Maximum resistance
• 0.9mm Contact diameter
• 360° Screening for full EMC shielding
• 2 Low voltage insert configuration

Applikationer

Industrial, Automotive, Communications & Networking, Medical, Test & Measurement, Aerospace, Defence, Military
