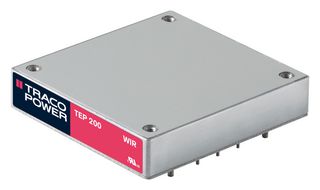

TEP 200-7212WIR

TEP 200WIR series is a family of isolated high performance DC/DC converter modules with ultra-wide 4:1 input voltage ranges. They come in rugged, sealed industry standard half brick package. A very high efficiency allows full power operation at 25°C with only 100 LFM air flow cooling and operation at 60°C with only 40% power derating. The very wide input voltage range and reverse input voltage protection make these converters interesting solution for battery operated systems. Typical applications are in telecom/datacom, industry control and railway systems for on-board power distribution.

• Compact metal package
• EN 50155 approval for railway applications
• Very high efficiency
• No minimum load, sense line
• Soft start, undervoltage lock-out circuit
• Adjustable output voltage +10 / -20%
• Continuous, automatic recovery short circuit protection
• EN 60950-1, EN 62368-1, IEC 60950-1, IEC 62368-1, UL 60950-1, UL 62368-1 safety standards
• Pollution degree PD 2, overvoltage category OVC II
• Switching frequency of 225 to 275KHz (PWM) (250KHz typ (PWM))
