Product Information
ManufacturerSIRETTA
Manufacturer Part NoTANGO420/2.5M/SMAM/SMAM/S/S/17
Order Code3690380
Product RangeTango
Technical Datasheet
Antenna TypeMIMO WiFi
Frequency Min690MHz
Frequency Max2700MHz
Antenna Mounting-
Gain3dB
VSWR2.6
Input Power60W
Input Impedance50ohm
Antenna PolarisationHorizontal / Vertical
Product RangeTango
SVHCNo SVHC (21-Jan-2025)

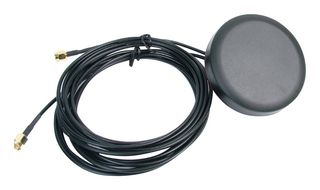

Product Overview
- Ideal for systems requiring multiple inputs/outputs
- 2 port MIMO 3G/4G antenna
- For use in IoT systems with sensors and controls that require remote monitoring and reporting
- Frequency range: Port 1 & 2 - 690 - 960 / 1710 - 2170 / 2500 - 2700MHz
- Operating Temperature: -40 to 75°C
- Storage Temperature: -45 to 75°C
- Cable: 2x RG174
- Connector: 2x SMA Male
- Mounting: Ø 12mm screw
- Maximum Material Thickness: 10mm
- Dimensions: 80x16mm
Technical Specifications
Antenna Type
MIMO WiFi
Frequency Max
2700MHz
Gain
3dB
Input Power
60W
Antenna Polarisation
Horizontal / Vertical
SVHC
No SVHC (21-Jan-2025)
Frequency Min
690MHz
Antenna Mounting
-
VSWR
2.6
Input Impedance
50ohm
Product Range
Tango
Technical Docs (1)
Legislation and Environmental
Country of Origin:
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Country in which last significant manufacturing process was carried outCountry of Origin:Taiwan
Country in which last significant manufacturing process was carried out
Tariff No:85291069
US ECCN:5A991.g
EU ECCN:NLR
RoHS Compliant:Yes
RoHS
RoHS Phthalates Compliant:Yes
RoHS
SVHC:No SVHC (21-Jan-2025)
Download Product Compliance Certificate
Product Compliance Certificate
Weight (kg):1.5
