Udskriv side

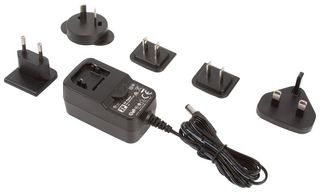

Billedet er vejledende. Se produktspecifikationen.
ProducentXP POWER
Producentens varenummerVER36US120-JA
Varenummer2646341
ProduktsortimentVER36 Series
Teknisk datablad
613 På Lager
375 Du kan reservere fra lager nu
EKSPRESLEVERING næste hverdag
Bestil inden kl. 17:00
GRATIS Standard levering tilgængelig
for ordrer over kr 580,00
Nøjagtige leveringstider vil blive beregnet i forbindelse med betaling
Antal | |
---|---|
1+ | kr 161,030 |
5+ | kr 156,180 |
10+ | kr 151,330 |
50+ | kr 144,920 |
100+ | kr 135,210 |
Pris for:Each
Minimum: 1
Flere: 1
kr 161,03 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentXP POWER
Producentens varenummerVER36US120-JA
Varenummer2646341
ProduktsortimentVER36 Series
Teknisk datablad
Power Supply ApplicationsITE
No. of Outputs1 Output
Output Power Max36W
Output Voltage - Output 112VDC
Output Current - Output 13A
Output Voltage - Output 2-
Output Current - Output 2-
Output ConnectorBarrel Plug Center Positive 2.1mm x 5.5mm x 12mm
Output Voltage - Output 3-
Output Current - Output 3-
Input Voltage AC Min90V
Power Supply Output TypeFixed
Input Voltage VAC90V AC to 264V AC
Input Voltage AC Max264V
Product RangeVER36 Series
Plug TypeAU, EU, UK, US
SVHCNo SVHC (16-Jul-2019)
Produktoversigt
VER36US120-JA is an AC-DC power supply. This wall plug adaptor complies with the very latest energy efficiency VI standards with high active mode efficiency and extremely low no-load power consumption. It suits a wide variety of cost-sensitive applications while maintaining industry-leading performance. Safety approvals include CB Report IEC60950-1, IEC62368-1, UL/cUL60950-1, approved as limited power source (LPS), UL62368-1, EN60950-1, EN62368-1, China Compulsory Certification, AU/NZS62368.1, AU/NZS3112, UKCA.
- European CoC tier 2
- Interchangeable mains connectors included
- Universal input, class II construction, low cost
- 36W output power, 12V output voltage
- 3000mA output current
- 5% total regulation
- 5.5 x 2.1 x 12mm DC jack output connector
- Dimension is 94.5 x 47.0 x 43.9mm
- 90 to 264V AC input voltage, 47 to 63Hz input frequency
- Operating temperature range from 0°C to +60°C
Tekniske specifikationer
Power Supply Applications
ITE
Output Power Max
36W
Output Current - Output 1
3A
Output Current - Output 2
-
Output Voltage - Output 3
-
Input Voltage AC Min
90V
Input Voltage VAC
90V AC to 264V AC
Product Range
VER36 Series
SVHC
No SVHC (16-Jul-2019)
No. of Outputs
1 Output
Output Voltage - Output 1
12VDC
Output Voltage - Output 2
-
Output Connector
Barrel Plug Center Positive 2.1mm x 5.5mm x 12mm
Output Current - Output 3
-
Power Supply Output Type
Fixed
Input Voltage AC Max
264V
Plug Type
AU, EU, UK, US
Tekniske dokumenter (3)
Alternativer til VER36US120-JA
1 produkt fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (16-Jul-2019)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.352794
