Udskriv side

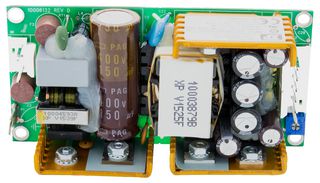

Billedet er vejledende. Se produktspecifikationen.
ProducentXP POWER
Producentens varenummerECM60UT31
Varenummer1176969
ProduktsortimentECM60 Series
Teknisk datablad
1 På Lager
425 Du kan reservere fra lager nu
EKSPRESLEVERING næste hverdag
Bestil inden kl. 17:00
GRATIS Standard levering tilgængelig
for ordrer over kr 580,00
Nøjagtige leveringstider vil blive beregnet i forbindelse med betaling
Antal | |
---|---|
1+ | kr 522,880 |
5+ | kr 507,250 |
10+ | kr 491,560 |
50+ | kr 470,630 |
100+ | kr 439,230 |
Pris for:Each
Minimum: 1
Flere: 1
kr 522,88 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentXP POWER
Producentens varenummerECM60UT31
Varenummer1176969
ProduktsortimentECM60 Series
Teknisk datablad
Power Supply ApplicationsITE & Medical
No. of Outputs3 Output
Output Power Max60W
Power Rating (Forced Cooling)-
Power Rating (Convection Cooling)60W
Input Voltage VAC90V AC to 264V AC
Power Supply Output TypeFixed
Output Voltage - Output 15VDC
Output Current - Output 18A
Output Voltage - Output 212VDC
Output Current - Output 23A
Output Voltage - Output 3-12VDC
Input Voltage AC Min90V
Output Current - Output 3500mA
Input Voltage AC Max264V
Output Voltage - Output 4-
Output Current - Output 4-
Product RangeECM60 Series
SVHCNo SVHC (16-Jul-2019)
Produktoversigt
ECM60UT31 is a ECM60 series, AC-DC power supply. It is approved by EN60601-1, ANSI/AAMI ES60601-1, CSA22.2, No.60601-1 per cUL, including risk management, IEC60950-1:2005 Ed 2 /IEC62368-1:2014, UL 62368-1 & CAN/CSA, C22.2 No. 62368-1-14, EN62368-1:2014/A11:2017, CE & UKCA.
- Compact size, IT & medical approvals, convection-cooled, Class I and II construction
- 60W output power
- 5V/+12V/-12V output voltage1/voltage2/voltage3
- 0.5A to 8A/0.1A to 3A/0.0A to 0.5A output current1/current2/current3, 70KHz typ switching frequency
- 40A max at 230VAC inrush current, EN61000-3-2 power factor
- Start up delay is 1.5s max, start up rise time is 10ms max
- Overvoltage protection, overload protection, short circuit protection
- 0.05%/°C temperature coefficient, 120% for 100ms peak load
- Operating temperature range from 0°C to +70°C
- 3 year warranty
Tekniske specifikationer
Power Supply Applications
ITE & Medical
Output Power Max
60W
Power Rating (Convection Cooling)
60W
Power Supply Output Type
Fixed
Output Current - Output 1
8A
Output Current - Output 2
3A
Input Voltage AC Min
90V
Input Voltage AC Max
264V
Output Current - Output 4
-
SVHC
No SVHC (16-Jul-2019)
No. of Outputs
3 Output
Power Rating (Forced Cooling)
-
Input Voltage VAC
90V AC to 264V AC
Output Voltage - Output 1
5VDC
Output Voltage - Output 2
12VDC
Output Voltage - Output 3
-12VDC
Output Current - Output 3
500mA
Output Voltage - Output 4
-
Product Range
ECM60 Series
Alternativer til ECM60UT31
1 produkt fundet
Tilknyttede produkter
3 produkter blev fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Vietnam
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Vietnam
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85044095
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (16-Jul-2019)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.147874
