Produktoplysninger
ProducentVISHAY
Producentens varenummerVS-1N3893
Varenummer1611610
ProduktsortimentVS-1N
Teknisk datablad
Repetitive Peak Reverse Voltage400V
Average Forward Current12A
Forward Voltage Max1.4V
Diode Module Configuration-
Diode Case StyleDO-203AA
No. of Pins2Pins
Operating Temperature Max150°C
Forward Surge Current150A
Diode MountingStud
Product RangeVS-1N
SVHCLead (08-Jul-2021)
Produktoversigt

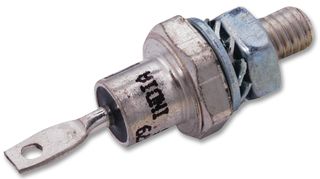

The VS-1N3893 is a Fast Recovery Diode with excellent surge capability. It is suitable for DC power supplies, inverters, converters, choppers, ultrasonic systems and freewheeling diodes applications.
- Short reverse recovery time
- Low stored charge
- Wide current range
- Standard JEDEC® type
- Fully characterized reverse recovery conditions
- Cathode to case
- -65 to 175°C Junction temperature range
Applikationer
Power Management, Industrial
Advarsler
Market demand for this product has caused an extension in leadtimes. Delivery dates may fluctuate. Product exempt from discounts.
Tekniske specifikationer
Repetitive Peak Reverse Voltage
400V
Forward Voltage Max
1.4V
Diode Case Style
DO-203AA
Operating Temperature Max
150°C
Diode Mounting
Stud
SVHC
Lead (08-Jul-2021)
Average Forward Current
12A
Diode Module Configuration
-
No. of Pins
2Pins
Forward Surge Current
150A
Product Range
VS-1N
Tekniske dokumenter (2)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:India
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:India
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:Lead (08-Jul-2021)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.007185
