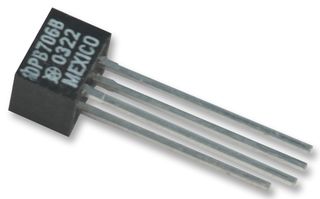

OPB706B
Reflective Photo Interrupter, OPB706 Series, Phototransistor, Through Hole, 1.27 mm, 50 mA, 2 Vr
Billedet er vejledende. Se produktspecifikationen.
ProducentTT ELECTRONICS / OPTEK TECHNOLOGY
Producentens varenummerOPB706B
Varenummer4890991
Teknisk datablad
520 På Lager
Brug for flere?
Dag-til-dag levering
Bestil før kl. 17:00 for standardforsendelse
| Antal | |
|---|---|
| 1+ | kr 17,010 |
| 10+ | kr 16,710 |
| 25+ | kr 16,330 |
| 50+ | kr 16,040 |
| 100+ | kr 15,660 |
| 500+ | kr 15,360 |
Pris for:Each
Minimum: 1
Flere: 1
kr 17,01 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentTT ELECTRONICS / OPTEK TECHNOLOGY
Producentens varenummerOPB706B
Varenummer4890991
Teknisk datablad
Sensing MethodReflective
Sensing Distance / Slot Width1.27mm
Supply Voltage Min-
Sensing Distance1.27mm
Forward Current If50mA
Supply Voltage Max-
Sensor Case / PackageModule
Reverse Voltage Vr2V
Collector Emitter Voltage Max30V
Collector Emitter Voltage V(br)ceo24V
Collector Current IC Max25mA
Forward Voltage1.7V
Sensor Output TypePhototransistor
IP Rating-
Sensor MountingThrough Hole
Operating Temperature Min-40°C
Operating Temperature Max85°C
Product Range-
Qualification-
SVHCNo SVHC (27-Jun-2024)
Produktoversigt
The OPB706B series Reflective Object Sensor that consists of an infrared Light Emitting Diode (LED) and an NPN silicon Phototransistor mounted “side-by-side” on parallel axes in a black plastic housing. On the sensor, the LED and Phototransistor are molded using dark infrared transmissive plastic to reduce ambient light noise. The Phototransistor, responds to light from the emitter when a reflective object passes within its field of view of the device.
- Phototransistor output
- Unfocused for sensing diffuse surface
- Plastic housing
- Designed for use with PCB or connectors
- Strong on dust and dirt
- Stronger noise resistance
- Strong even in cold environments
- Beam axis alignment made easy with a high luminance spot beam
- Reduction of volume adjustment labour
- Can be used for sensing minute differences
- BGS/FGS functions
Applikationer
Sensing & Instrumentation, Automation & Process Control, Safety, Industrial
Tekniske specifikationer
Sensing Method
Reflective
Supply Voltage Min
-
Forward Current If
50mA
Sensor Case / Package
Module
Collector Emitter Voltage Max
30V
Collector Current IC Max
25mA
Sensor Output Type
Phototransistor
Sensor Mounting
Through Hole
Operating Temperature Max
85°C
Qualification
-
Sensing Distance / Slot Width
1.27mm
Sensing Distance
1.27mm
Supply Voltage Max
-
Reverse Voltage Vr
2V
Collector Emitter Voltage V(br)ceo
24V
Forward Voltage
1.7V
IP Rating
-
Operating Temperature Min
-40°C
Product Range
-
SVHC
No SVHC (27-Jun-2024)
Tekniske dokumenter (1)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Mexico
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Mexico
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85414900
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (27-Jun-2024)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.000726
