2213800-2

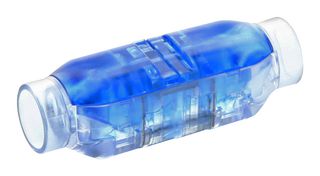

Wire Splice, IPX8, Sealed, CoolSplice, IDC / IDT, 18 AWG, 18 AWG, 0.75 mm², Wire Splice
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 18,210 |
| 10+ | kr 12,760 |
| 100+ | kr 11,720 |
| 250+ | kr 10,820 |
| 500+ | kr 10,150 |
| 1000+ | kr 9,700 |
Produktoplysninger
Produktoversigt
The CoolSplice connector range from TE Connectivity was designed for easy field installation. The CoolSplice Series allows for push button termination using a common pair of pliers. Both wires are terminated independently for ease of use and this feature allows for factory pre-termination of one wire and field termination of the second during installation. The Key benefits are enable a waterproof solution with an IP rated splice and save installation time and eliminate the need to pre-strip wires with insulation displacement technology (IDC). Typical applications include outdoor lighting, indoor lighting fixtures and wiring harness field repairs.
- Simple push button termination
- Reliable and proven insulation displacement technology
- CoolSplice operating temperature between -40°C and 105°C
- Left/right side independent terminations
- Slim-symmetrical glossy appearance
- Visually controlled termination
Applikationer
Industrial, Lighting, Maintenance & Repair, Security
Tekniske specifikationer
CoolSplice
18AWG
0.75mm²
Blue
Phosphor Bronze
IDC / IDT
18AWG
Wire Splice
PC (Polycarbonate)
2-(2H-benzotriazol-2-yl)-4-(1,1,3,3-tetramethylbutyl)phenol (21-Jan-2025)
Tekniske dokumenter (3)
Alternativer til 2213800-2
1 produkt fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Czech Republic
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
