Produktoplysninger
ProducentSEMIKRON
Producentens varenummerSKKD 46/12
Varenummer2423632
ProduktsortimentSKKD
Teknisk datablad
Repetitive Peak Reverse Voltage1.2kV
Average Forward Current47A
Forward Voltage Max1.95V
Diode Module Configuration1 Pair Series Connection
Diode Case StyleModule
No. of Pins3Pins
Operating Temperature Max125°C
Forward Surge Current700A
Diode MountingPanel
Product RangeSKKD
SVHCLead (17-Jan-2023)
Alternativer til SKKD 46/12
1 produkt fundet
Produktoversigt

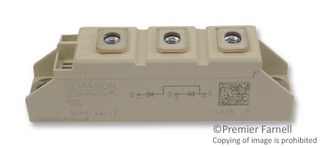

The SKKD 46/12 is a SEMIPACK® 1 Rectifier Diode Module with hard solder joints for high reliability. It is suitable for non-controllable rectifiers for AC/AC converters, line rectifiers for transistorized AC motor controllers and field supply for DC motors applications.
- Heat transfer through aluminium oxide ceramic isolated metal baseplate
Applikationer
Power Management, Motor Drive & Control, Industrial
Tekniske specifikationer
Repetitive Peak Reverse Voltage
1.2kV
Forward Voltage Max
1.95V
Diode Case Style
Module
Operating Temperature Max
125°C
Diode Mounting
Panel
SVHC
Lead (17-Jan-2023)
Average Forward Current
47A
Diode Module Configuration
1 Pair Series Connection
No. of Pins
3Pins
Forward Surge Current
700A
Product Range
SKKD
Tekniske dokumenter (3)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Slovak Republic
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Slovak Republic
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85411000
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Y-Ex
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:Lead (17-Jan-2023)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.094483
