44A1121-20-2/6-9
Multicore Cable, Spec 44, Screened, 2 Core, 20 AWG, 0.62 mm², 328 ft, 100 m
800 Du kan reservere fra lager nu
| Antal | |
|---|---|
| 1+ | kr 6.647,000 |
| 5+ | kr 6.472,000 |
Produktoplysninger
Produktoversigt

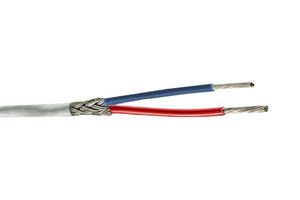

The 44A1121-20-2/6-9 is a 100m 2-core Screened Cable with tin-plated copper conductor and a shield, white PVF2 jacket. The 3822873005 SPEC 44 cable has a dual wall construction which combines the outstanding physical and electrical characteristics of radiation cross-linked polyalkene with the excellent mechanical and chemical properties of radiation cross-linked polyvinylidene fluoride (PVDF). The result is a wire insulation system that offers a 150°C temperature rating, solder iron resistance and resistance to most solvents, fuels and lubricants. SPEC 44 cable is highly flame retardant, non-melting, does not cold flow and though mechanically very tough, is easy to handle and install using conventional tools.
- CPR: Not Yet Qualified
- Small size, light weight
- Low smoke and low corrosive gas generation
- Resistant to most chemicals and electrical arc tracking
Applikationer
Industrial, Commercial, Aerospace, Defence, Military, Avionics, Sensing & Instrumentation
Tekniske specifikationer
2Core
0.62mm²
100m
600V
20AWG
328ft
3.76mm
Tekniske dokumenter (2)
Tilknyttede produkter
4 produkter blev fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Great Britain
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
