ENW49802A1JF

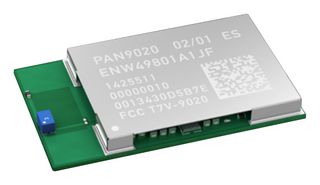

PAN9020 series is a 2.4GHz ISM band wireless radio module for implementing WLAN functionality into various electronic devices. It is a cost-effective, low-power operation, system-on-chip (SoC) solution for WLAN applications. It enables wireless network adapters and cards to be built with low total bill-of-material costs. The PAN9020 series combines an excellent 802.11 wireless radio, baseband processor, medium access controller, encryption unit, CPU, boot ROM with patching capability, internal SRAM, in-system programmable flash memory and many other powerful supporting features and peripherals. The low-power operation supporting deep sleep and standby modes by using the on-board power management unit. The PAN9020/10 is suitable for wireless network systems based on WLAN IEEE 802.11 b/g/n 2.4GHz where small form factor, highly integration, high throughput data rates and low RF expertise are required.

• PAN9020S WLAN IEEE 802.11 b/g/n 2.4GHz radio module with SDIO HOST interface, ceramic chip-antenna
• Surface mount type (22.75 x 13.5 x 2.4mm³)
• Wireless local area network (WLAN) technology
• Operating in the 2.4GHz ISM band
• Supports IEEE 802.11
• Internal crystal oscillator (40MHz)
• Tx power up to +18dBm (IEEE 802.11b CCK) and +15dBm (IEEE 802.11g ODFM)
• High Rx sensitivity of -98dBm (IEEE 802.11b DSSS 1Mbps)
• Marvell® 88W8782 WLAN system-on-chip (SoC) solution inside
• High performance low power CPU core, two powerful independent DMA channels
