WTM-1000-EU

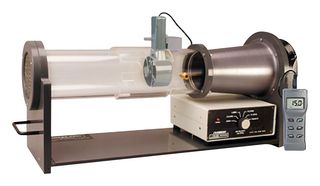

WTM-1000-EU is a laboratory-grade mini wind tunnel Europe(excluding IT, DM, UK) gives a highly uniform flow rate at 4 selectable fixed air speeds. The fixed air speeds range from 2.5m/s (492fpm) to 15m/s (2953fpm). With the remote option, the user can control and vary the wind tunnel air speed externally by connecting a potentiometer. The internal 10cm (4") diameter test chamber is large enough to accommodate either hot-wire or vane-type anemometers. The unit is powered by 90 to 250VAC. Each WTM-1000 comes with an NIST calibration certificate for the 4 fixed air speeds.

• 4 selectable air speeds: 2.5m/s (492fpm), 5.0m/s (984fpm), 10m/s (1969fpm), 15m/s (2953fpm)
• Accuracy of 1% of setting or 0.1 m/s, whichever is larger
• Remote option for variable air speed
• Accommodates either hot-wire or vane-type anemometers
• 68.5 L x 20.3 W x 29.2cm H size

Indhold

Mini wind tunnel, Operator’s manual, NIST certificate of calibration.
