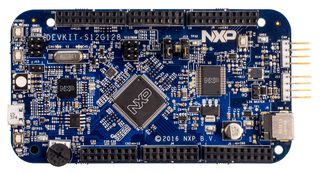

DEVKIT-S12G128

DEVKIT-S12G128 is a S12G128 general purpose evaluation board. The board features the S12G128 16-bit microcontroller for automotive and industrial general purpose applications. The S12G family features an S12 core, scalable memory up to 240 KB of Flash, CAN, LIN, SPI and SCI communications, is offered in 64 and 100 pin packages and supports -40 to 125 °C temperatures. The DEVKIT-S12G128 is a low-cost development kit with CAN, LIN and SCI connections and 10-bit ADC in a small form factor board compatible with the Arduino® UNO Rev3 pinout. It has expansion options using the DEVKIT-COMM boards. The development kit features a 12 V power supply, USB powered OpenBDM debug, potentiometer, dual push buttons and RGB LED.

• USB to serial interface
• Supports CAN and LIN connectors
• OSBDM onboard open source programming and debugging tool

Noter

12V (1Amp) power supply is required for debugging and CAN/LIN communication, this is not included in the kit.
