681S13W3103L001

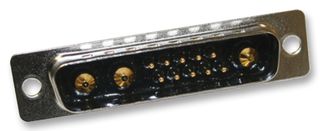

The SEAL-D 681S series POWER-D vertical board-mount Mixed D-sub Connectors with machined copper alloy, full gold flash signal and power contacts with glass-filled thermoplastic insulator and nickel-plated, steel shell. It is available in 11 industry standard sizes/positions are 3W3, 5W1, 5W5, 7W2, 9W4, 11W1, 13W3, 13W6, 17W2, 21W1 and 21WA4. Unique sealing method maintains standard D-sub profile allowing for drop in replacement of current POWER-D connectors.

• Available in 9, 15, 25 and 37 sizes/positions
• Available with 40A power contacts, 5A signal
• IP67 Protection
• Allows signal, high current and high voltage in one connector
• Contacts are pre-loaded into the insulator
• UL94V-0 Flammability rating
• Panel sealing kits (Removable or permanent) available as a separate item

Applikationer

Communications & Networking, Computers & Computer Peripherals, Power Management, Industrial
