785619-01

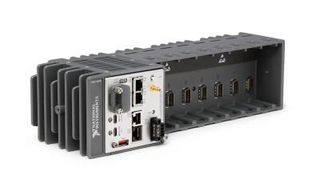

785619-01 is a cRIO-9048 CompactRIO controller. It is a rugged, high-performance, customizable embedded controller that offers Intel Atom dual-core processing, NI-DAQmx support, and an SD card slot for data-logging, embedded monitoring, and control. It includes a Kintex-7 160T FPGA with LabVIEW FPGA Module support for advanced control and coprocessing. The controller provides precise, synchronized timing and deterministic communications using Time Sensitive Networking (TSN), which is ideal for highly distributed measurements. This controller offers several connectivity ports, including Gigabit Ethernet, USB 3.1, USB 2.0, RS232, and RS485 ports. You can use the USB 3.1 ports to add a local human machine interface and program, deploy, and debug software, which simplifies application development.

• 1.30GHz dual core Intel Atom CPU
• 2GB RAM size, 8GB hard drive memory size
• 8-slot CompactRIO controller
• 2 Ethernet ports on controller
• GigE vision support
• Operating temperature range from -40°C to 70°C
