MPIF480-10B24

Name: AC/DC DIN Rail Power Supply (PSU), ITE & Laboratory Equipment, 1 Output, 480 W, 24 VDC, 20 A
Brand: MULTICOMP PRO
SKU: 3872855
Availability: LimitedAvailability

AC/DC DIN Rail Power Supply (PSU), ITE & Laboratory Equipment, 1 Output, 480 W, 24 VDC, 20 A

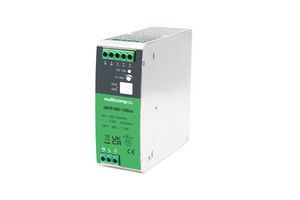

Billedet er vejledende. Se produktspecifikationen.

ProducentMULTICOMP PRO

Producentens varenummerMPIF480-10B24

Varenummer3872855

Teknisk datablad

Data Sheet

Se alle tekniske dokumenter

14 På Lager

Brug for flere?

Dag-til-dag levering

Bestil før kl. 17:00 for standardforsendelse

Leveres så længe lager haves

Antal
1+	kr 985,010
5+	kr 857,790

Pris for:Each

Minimum: 1

Flere: 1

kr 985,01 (ekskl. Moms)

Tilføj varenr. / Linjenote

Linjenote

Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.

Dit varenr.

Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.

Produktoplysninger

ProducentMULTICOMP PRO

Producentens varenummerMPIF480-10B24

Varenummer3872855

Teknisk datablad

Data Sheet

Power Supply ApplicationsITE & Laboratory Equipment

No. of Outputs1 Output

Output Power Max480W

Output Voltage - Output 124VDC

Output Current - Output 120A

Output Voltage - Output 2-

Output Current - Output 2-

Output Voltage - Output 3-

Output Current - Output 3-

Output Voltage - Output 4-

Output Current - Output 4-

Input Voltage VAC85V AC to 264V AC

Power Supply Output TypeAdjustable, Fixed

Product Range-

SVHCTo Be Advised

Alternativer til MPIF480-10B24

2 produkter blev fundet

Produktoversigt

MPIF480-10B24 is an AC-DC DIN rail mount power supply. This power supply (AC/DC converter) featuring a cost-effective, energy efficient green power supply solution for standard DIN-rail mounting. This product offers a high level of stability and immunity to noise for industrial control equipment, machinery, and other industrial equipment in a variety of harsh environments. This light weight AC-DC converter have an extremely compact design and the standard rail (48mm) installation for space saving. With good EMC performance, compliant with international IEC/EN/UL62368, UL61010, UL508 standards for EMC and safety.

Universal 85V AC 264V AC or 120V DC to 370V DC input voltage
Accepts AC or DC input (dual-use of same terminal)
High I/O isolation test voltage up to 3000VAC
DC OK function and active PFC, PF <gt/> 0.95
Low ripple & noise
Output short circuit, over-current, over-voltage, over-temperature protection
Ultra slim design with 48mm width
480W output power, 24V/20A nominal output voltage and current (Vo/Io)
94% efficiency (typ) at 230VAC
Operating ambient temperature range from -30°C to +70°C

Applikationer

Power Supplies, Electronics, Utilities, Instrumentation, Electronics Design, Industrial

Noter

Standards: EN61558-1

Tekniske specifikationer

Power Supply Applications

ITE & Laboratory Equipment

Output Power Max

480W

Output Current - Output 1

20A

Output Current - Output 2

Output Current - Output 3

Output Current - Output 4

Power Supply Output Type

Adjustable, Fixed

SVHC

To Be Advised

No. of Outputs

1 Output

Output Voltage - Output 1

24VDC

Output Voltage - Output 2

Output Voltage - Output 3

Output Voltage - Output 4

Input Voltage VAC

85V AC to 264V AC

Product Range

Tekniske dokumenter (2)

CAD Multiple Formats EN

Technical Data Sheet EN

Tilknyttede produkter

1 produkt fundet

Lovgivning og miljø

Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted

Tarifnr.:85044083

US ECCN:EAR99

EU ECCN:NLR

RoHS-kompatibel:Ja

RoHS

Kompatible med RoHS-phthalater:Ja
