MP710509

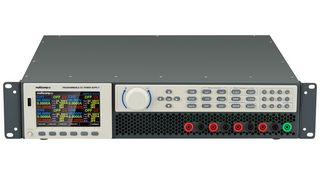

The MP710509 from Multicomp Pro is a 4-channel DC power supply with built-in oscilloscope function. The device can provide pure linear output of 4 isolated channels with features such as stability, free interference, low ripple and low noise.

• High speed coordinated o/p and each channel can be controlled with 4-ch o/p delays as microseconds
• LIST programmable output sequence, 100 consecutive different settings
• LIST mode and normal mode can be switched automatically with one key
• Oscilloscope function for simultaneous display of four channels voltage and current
• Oscilloscope screen capture via USB access to U disk
• U disk import and export output table data, editable within Excel
• Low chopping and low noise
• High resolution and precision
• Remote measurement function
• Built-in USB/RS-232/GPIB/LAN communication interfaces
• Device weight – 16.5kg
• Device dimension is 430mm x 88mm x 440mm (W x H x D)

Indhold

Power supply, User manual, EU/UK mains leads.

Noter

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
