MP700641

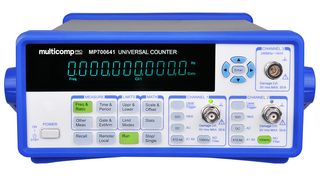

The MP700641 is a frequency counter capable of measuring up to 6.5GHz (CH3), with a display resolution of 8 digits/s. This device can measure frequency, period, duty cycle, frequency ratio, totalize, phase difference, pulse width, time interval and DCV. Also, utility statistics functions of multi-average, maximum, minimum, PPM, standard deviation and Allan variance for frequency measurements.

• CH1 & CH2 measurement ranges of 0.001Hz to 200MHz, CH3 200MHz to 6.5GHz
• 5ns ~ 1000s period
• 10ns ~ 10000s time interval range
• 2.5ns time resolution
• 30ns ~ 5000s pulse width
• 1% ~ 99% duty cycle
• 50mVrms ~ 1.0Vrms (sine), 150mVpp ~ 4.5Vpp (pulse) dynamic range
• 1MΩ//35pF or 50Ω input impedance
• x1 or x10 input attenuation
• Trigger level of -5.000V ~ +5.000V
• USB, RS-232 & GPIB interfaces
• Device dimension is 375mm x 105mm x 235mm
• Device weight is 3.7kg

Noter

Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
