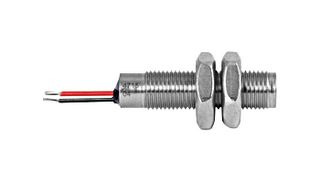

MP-HS-2210M-5-0300
Hall Effect Proximity Sensor, Wire Leads, M10, 3 to 24 VDC
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 128,630 |
| 10+ | kr 117,880 |
| 25+ | kr 108,840 |
| 50+ | kr 101,070 |
| 100+ | kr 94,350 |
| 200+ | kr 88,370 |
Produktoplysninger
Produktoversigt
MP-HS-2210M-5-0300 is a hall threaded effect position sensor. Hall sensors is ideal for high frequency applications where accuracy and product life are critical. Typical applications include position control, speed measurement RPM, non-touch switching, level sensing and flow detection. It operates with a supply voltage of up to 24VDC making it suitable for the automotive industry. It offers flat pack, tubular threaded and flange mount solutions. It is IP67 rated.
- Compact size, various switching sensitivities
- Supply voltage range from 3 to 24V
- Low supply current range from 2 to 5V (TJ=25°C and VSUP= 12V)
- 1μs output fall time and rise time max (TJ=25°C, VSUP=12V)
- Delay time is 16μs typ (TJ=25°C), output refresh period range from 1.6 to 2.66μs (VSUP=12V, TJ=25°C)
- Nickel plated brass housing, UL1007/1569, AWG 24 cable
- Epoxy potting compound
- Operating temperature range from -20°C to + 85°C
Applikationer
Industrial, Automation & Process Control, Automotive, Installations
Indhold
x1 Hall effect proximity sensor.
Noter
Versatile and cost-effective solution for a variety of applications.
Tekniske specifikationer
Magnetic Sensor
24V
2.7V
24V
Thread Mount
No SVHC (21-Jan-2025)
3V
Wire Leads
-20°C
85°C
-
Tekniske dokumenter (1)
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
