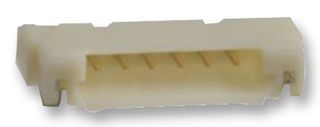

502352-0600

The DuraClik 502352 series Wire-to-board right angle header has tin-plated copper alloy contacts with surface mount termination. This 502352 series PCB header is made of polyamide, mates with DuraClik™ crimp housings 502351, 560123, 505151, suitable for signal and wire-to-board applications. DuraClik connector is a 2.00mm pitch, unsealed, wire-to-board connection system. For signal current of 3.0A this system is designed to provide space savings and superior performance for high-vibration and high temperature applications. The enhanced versions of DuraClik are a secondary locking feature with an Independent Secondary locking (ISL) or a Terminal Positioning Assurance (TPA) to meet changing market requirements of our customers.

• Positive inner-lock design provides space savings and prevents latch breakage from wire tangling
• Click sound when mated - audible mating confirmation
• Secure PCB retention using a shock-proof SMT design with wide solder tabs (nails)
• Enclosed terminal design protects contact against dust and debris
• Open area for pick-and-place assembly
• High-temperature terminal material
• Natural colour
• Current rating per contact is 3A
• Voltage rating is 125V

Applikationer

Automotive, Commercial Vehicle, Consumer Electronics, Industrial
