43030-0009
Contact, Micro-Fit 3.0™, Micro-Fit 3.0 43030, Socket, Crimp, 20 AWG, Gold Plated Contacts
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 1,340 |
| 10+ | kr 1,100 |
| 50+ | kr 0,971 |
| 100+ | kr 0,867 |
| 500+ | kr 0,728 |
| 1000+ | kr 0,698 |
Produktoplysninger
Produktoversigt

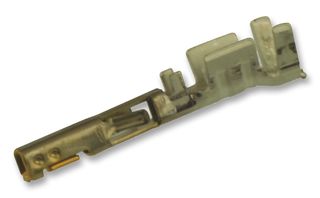

The 43030-0009 is a Micro-Fit 3.0™ female socket crimp terminal made of phosphor bronze with gold plated finish. This 43030 series female crimp terminal accepts 24 to 20AWG wire. The socket terminal mates with 43031 Micro-Fit 3.0™ male crimp terminals. It can be used with 43025, 43645 Micro-Fit 3.0™ receptacle housings and 44133 Micro-Fit BMI™ panel mount receptacle housings. The terminal is suitable for power applications.
- Locking tab on terminal secures terminal in housing
- Maximum current per contact is 5A
Applikationer
Alternative Energy, Automotive, Communications & Networking, Consumer Electronics, Medical
Tekniske specifikationer
Micro-Fit 3.0 43030
Crimp
Gold Plated Contacts
24AWG
No SVHC (21-Jan-2025)
Socket
20AWG
Molex Micro-Fit 3.0 43025, 43645 & Micro-Fit BMI 44133 Series Receptacle Housing Connectors
Phosphor Bronze
Alternativer til 43030-0009
6 produkter blev fundet
Tilknyttede produkter
3 produkter blev fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
