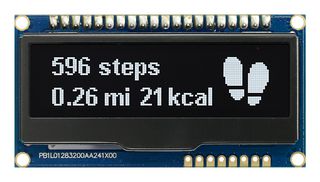

Billedet er vejledende. Se produktspecifikationen.
Kan bestilles
Producentens standard leveringstid: 16 uge(r)
Kontakt mig, når varen er på lager
Antal | |
---|---|
1+ | kr 271,700 |
5+ | kr 261,300 |
10+ | kr 250,830 |
50+ | kr 217,400 |
100+ | kr 214,110 |
Pris for:Each
Minimum: 1
Flere: 1
kr 271,70 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentMIDAS DISPLAYS
Producentens varenummerMDOB128032FCV-WM
Varenummer3154948
Teknisk datablad
Resolution128 x 32 Pixels
Display AppearanceWhite on Black
Logic Voltage3.3V
Interface TypeI2C, Parallel, SPI
Module Size66.5mm x 35mm
Operating Temperature Min-40°C
Operating Temperature Max80°C
Display ConstructionCOB
Product Range-
SVHCNo SVHC (27-Jun-2024)
Produktoversigt
- Module dimension: 66.5x35.0x9.0mm
- Active area: 55.018x13.098 mm
- Dot Matrix: 128x32
- Pixel size: 0.408x0.388 mm
- Pixel pitch: 0.43x0.41 mm
- Display Mode:Passive Matrix
- 1/32 Duty
- Display Colour: White
- IC: SSD1305Z
- Interface: 6800, 8080, SPI, I2C
- Size: 2.23"
Tekniske specifikationer
Resolution
128 x 32 Pixels
Logic Voltage
3.3V
Module Size
66.5mm x 35mm
Operating Temperature Max
80°C
Product Range
-
Display Appearance
White on Black
Interface Type
I2C, Parallel, SPI
Operating Temperature Min
-40°C
Display Construction
COB
SVHC
No SVHC (27-Jun-2024)
Tekniske dokumenter (1)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Taiwan
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Taiwan
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85312020
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (27-Jun-2024)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.04
