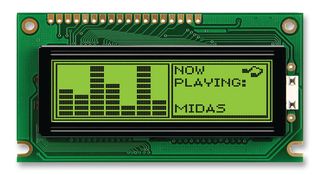

Billedet er vejledende. Se produktspecifikationen.
Kan bestilles
Producentens standard leveringstid: 14 uge(r)
Kontakt mig, når varen er på lager
Antal | |
---|---|
5+ | kr 113,690 |
Pris for:Each
Minimum: 5
Flere: 5
kr 568,45 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentMIDAS DISPLAYS
Producentens varenummerMC122032B6W-SPR-V2
Varenummer2675688
Teknisk datablad
Resolution122 x 32 Pixels
Display Appearance-
Logic Voltage5V
Interface TypeParallel
Font SetNo Font
Display ModeReflective
LCD Display TypeSTN
Module Size84mm x 44mm
Operating Temperature Min-20°C
Operating Temperature Max70°C
Display ConstructionCOB
Backlighting ColourNo Backlight
Product Range-
SVHCNo SVHC (27-Jun-2024)
Produktoversigt
The MC122032B6W-SPR-V2 from Midas is a chip on board graphic LCD module. The overall size of module is 80mm x 44mm x 10mm (W x H x D) with 122 x 32 characters.
- Typical input voltage is 5V
- Supply current is 1.5mA at Vdd = 5V
- Yellow/green reflective STN
- 6 "o" clock viewing direction
- SBN1661G_M02 controller
- Operating temperature range from -20°C to 70°C
- Onboard AVANT SBN1661G Controller with standard parallel interface
- 5V logic supply, 1/32 display duty and 1/7 driving bias
- No backlight
- Preferred 6 o'clock viewing angle
- Wide operating temperature range -20 to +70oC
- 20-way through-hole SIL connection (top, left) with 2.54mm pitch
- Overall dimensions - 84.0 x 44.0 x 10.0mm
- Same foot print as industry standard 16 x 2 alphanumeric LCD module
Applikationer
Imaging, Video & Vision
Tekniske specifikationer
Resolution
122 x 32 Pixels
Logic Voltage
5V
Font Set
No Font
LCD Display Type
STN
Operating Temperature Min
-20°C
Display Construction
COB
Product Range
-
Display Appearance
-
Interface Type
Parallel
Display Mode
Reflective
Module Size
84mm x 44mm
Operating Temperature Max
70°C
Backlighting Colour
No Backlight
SVHC
No SVHC (27-Jun-2024)
Tekniske dokumenter (2)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85312095
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (27-Jun-2024)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.06
