EV70N78A

EV70N78A is a AVR-IoT cellular mini development board is a hardware platform to evaluate and develop IoT solutions with the Microchip AVR128DB48 AVR® microcontroller, ATECC608B secure element, and the Sequans Monarch 2 GM02S cellular module. Included with the development board is a SIM card from Truphone with 150MB data ready for activation. The Sequans Monarch 2 GM02S requires a connection to a LTE-M or NB-IoT capable cellular network. With a connection to a capable cellular network the ATECC608B can be used to authenticate the hardware with the cloud to uniquely identify every board.

• 824MHz-2170MHz cellular flexible antenna
• Prepaid SIM card from Truphone - 150 MB data included
• Nano SIM Card Holder
• eSIM footprint, five user LEDs, Two mechanical buttons, VMK3-9002 32.768KHz crystal
• VEML3328 colour sensor, MCP9808 temperature sensor
• Adafruit Feather compatible edge connector, Qwiic® I2C connector
• On-board debugger
• Arduino compatible with its own Cellular Arduino Library
• USB, battery and external-input power options
• MCP73830 li-ion/lipo battery charger, with charge status LED

Indhold

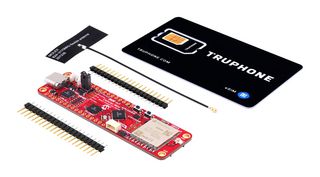

AVR-IoT cellular mini, Two 100mil pin header strips, 1x16 pin and 1x12 pin, Prepaid SIM card, Cellular antenna.
