EV36W50A
Development Kit, WFI32-IOT, 32bit, PIC, PIC32 Family
Billedet er vejledende. Se produktspecifikationen.
3 På Lager
Brug for flere?
EKSPRESLEVERING næste hverdag
Bestil inden kl. 17:00
GRATIS Standard levering tilgængelig
for ordrer over kr 0,00
Nøjagtige leveringstider vil blive beregnet i forbindelse med betaling
| Antal | |
|---|---|
| 1+ | kr 637,980 |
Pris for:Each
Minimum: 1
Flere: 1
kr 637,98 (ekskl. Moms)
Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Produktoplysninger
ProducentMICROCHIP
Producentens varenummerEV36W50A
Varenummer3958405
Teknisk datablad
Silicon ManufacturerMicrochip
No. of Bits32bit
Silicon Family NamePIC32
Core ArchitecturePIC
Core Sub-ArchitecturePIC32
Silicon Core NumberWFI32-IOT
Kit ContentsFloating License Upgrade-Power Management serial triggering and analysis (SPMI)
Product Range-
SVHCNo SVHC (25-Jun-2025)
Produktoversigt

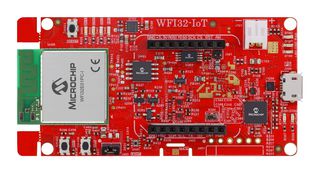

EV36W50A is a WFI32-IoT board. The WFI32-IoT board is a compact, stand-alone and easy-to-use board that helps the user to develop the Internet of-Things (IoT) applications with the WFI32E01PC module, a highly integrated Wi-Fi® MCU module that supports smart Wi-Fi functionalities and premium MCU features. The WFI32E01PC module has a PCB antenna and Trust&GO hardware secure element, which is pre-provisioned to popular cloud platforms.
- Provides an easy way to connect the embedded application to cloud IoT platforms such as AWS & Azure
- Includes PICkit on-board 4 debugger interface and requires no external hardware to program and debug
- Includes a mikroBUS™ Click™ header
- Requires only a micro USB cable to power up and program the board
- Certified WFI32E01PC module
- Four user LEDs, two user configurable switch, one reset switch
- On-board temperature sensor, on-board light sensor
- 32Mbit external SPI flash memory
- Li-ion/lipo battery charger with power path management
Indhold
WFI32E01PC module mounted on the WFI32-IoT board, Type-A male to micro-B USB cable.
Tekniske specifikationer
Silicon Manufacturer
Microchip
Silicon Family Name
PIC32
Core Sub-Architecture
PIC32
Kit Contents
Floating License Upgrade-Power Management serial triggering and analysis (SPMI)
SVHC
No SVHC (25-Jun-2025)
No. of Bits
32bit
Core Architecture
PIC
Silicon Core Number
WFI32-IOT
Product Range
-
Tekniske dokumenter (1)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:84733020
US ECCN:5A992.c
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (25-Jun-2025)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.138799
