X216151

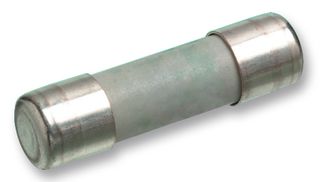

Fuse, Industrial / Power, Class aM, 20 A, 500 VAC, 10mm x 38mm, 13/32" x 1-1/2"
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 15,420 |
| 10+ | kr 11,550 |
| 25+ | kr 9,910 |
| 50+ | kr 9,240 |
| 100+ | kr 8,640 |
Produktoplysninger
Produktoversigt
The X216151 is a 20A IEC Cylindrical Fuse-Link with ceramic body and silver plated copper contacts. It covers a wide range of physical sizes for 500VAC for protection in electrical distribution circuits. Cylindrical fuse-link aM is partial range fuse. It protects electrical device in case of unacceptable high short-circuit against destruction due high current limiting and low thermal let-through values. It cut off currents more than 6.3xln until the maximum breaking capacity (rated breaking capacity). Cylindrical fuse-link aM is mainly used for the protection of installation switch gear in motor circuit currents. For classification of the cylindrical fuse-link the nominal current of the fuse-link can be selected respective to the nominal current of the motor. It is designed to ensure highly reliable technical performance.
- Reduced size
- Visual indication of fuse operation
- Safest and most reliable protection system
Applikationer
Motor Drive & Control, Industrial
Tekniske specifikationer
Class aM
500VAC
10mm x 38mm
-
20A
-
13/32" x 1-1/2"
Tekniske dokumenter (2)
Alternativer til X216151
1 produkt fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Spain
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
Certifikater om produktoverholdelse
