ProducentLITTELFUSE
Producentens varenummer0FLU.440T
Varenummer9943331
ProduktsortimentFLU Series
Teknisk datablad
38 På Lager
210 Du kan reservere fra lager nu
Dag-til-dag levering
Bestil før kl. 17:00 for standardforsendelse
Antal | |
---|---|
1+ | kr 261,550 |
5+ | kr 250,060 |
10+ | kr 238,490 |
Pris for:Each
Minimum: 1
Flere: 1
kr 261,55 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentLITTELFUSE
Producentens varenummer0FLU.440T
Varenummer9943331
ProduktsortimentFLU Series
Teknisk datablad
Product RangeFLU Series
Fuse Current440mA
Voltage Rating VAC1kV
Voltage Rating VDC1kV
Fuse Size Metric10.3mm x 34.9mm
Fuse Size Imperial0.4" x 1.37"
Blow CharacteristicFast Acting
SVHCNo SVHC (17-Dec-2014)
Produktoversigt

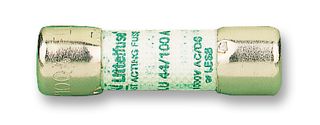

0FLU.440T is a FLU series cartridge and axial lead fast-acting 1000V fuse. It is specifically designed for the protection of multimeters. This midget fuse supplement the primary branch-circuit fuse or breaker to provide backup overcurrent protection. It also has the capability to limit currents with fast-acting reliability. Application includes multimeters, variety of applications using 1000V AC or DC. It is certified by UL recognized (File: E10480), CSA Certified (File: LR29862).
- 10x38mm size - common dimensions used in a variety of applications
- Fast-acting - provides fast short-circuit response within the interrupting rating
- POWR-GARD® technology - ensures quality backup overcurrent protection
- 44⁄100A amp rating, 1000VAC/DC voltage rating
- 10KA interrupting rating (AC/DC)
Tekniske specifikationer
Product Range
FLU Series
Voltage Rating VAC
1kV
Fuse Size Metric
10.3mm x 34.9mm
Blow Characteristic
Fast Acting
Fuse Current
440mA
Voltage Rating VDC
1kV
Fuse Size Imperial
0.4" x 1.37"
SVHC
No SVHC (17-Dec-2014)
Tekniske dokumenter (2)
Tilknyttede produkter
1 produkt fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Mexico
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Mexico
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85361010
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (17-Dec-2014)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.008
