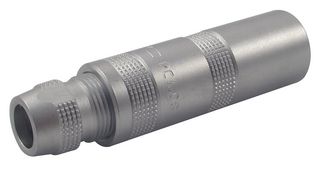

PCA.0S.304.CLLC44
Circular Connector, Circular Industrial, 0S Series, Cable Mount Receptacle, 4 Contacts
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 218,720 |
| 10+ | kr 188,900 |
| 25+ | kr 159,820 |
| 100+ | kr 156,850 |
| 250+ | kr 153,720 |
| 500+ | kr 150,600 |
Produktoplysninger
Produktoversigt
The 0S series modular Circular Connector offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Contact types include LV, HV, coax and triaxial providing for every eventuality. Hybrids including of any of the above contacts are also available. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.
- Secure push-pull latching
- Unipole and multipole to 106 contacts
- Full EMC protection
- Solder and PCB contacts
- Up to 230A current rating
- 5000 Mating cycles
- <gt/>144-hour Salt spray
- -55 to +250°C Temperature range
Applikationer
Test & Measurement, Medical, Aerospace, Defence, Military, Automotive, Communications & Networking
Tekniske specifikationer
Circular Industrial
Cable Mount Receptacle
Solder Pin / Socket
Brass Body
Brass, Beryllium Copper
No SVHC (14-Jun-2023)
0S Series
4Contacts
Push-Pull
Chrome
Gold
Tekniske dokumenter (2)
Tilknyttede produkter
1 produkt fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Great Britain
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
