DPM950

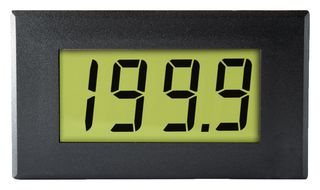

The DPM950 is a Large LCD Voltmeter features a 3-1/2-inch digit LCD with 19mm digit height and LED backlighting. With 200mVDC full scale reading, auto-zero and auto-polarity, this meter plugs directly into a 16-way IDC socket and can be fitted into a panel via the bezel, window and clips provided. It is a popular part, normally stocked in high quantity and suitable for new designs. Very low current consumption results in a long battery life and makes this ideal for portable equipment. For low light viewing, a long life LED backlight is fitted. The meter is housed in a robust carrier which can be bolted in place or panel mounted using the bezel, window and clips provided.

• Single rail version
• Alarm annunciator
• IDC interface
• 3 Samples/sec rate

Applikationer

Industrial, Clock & Timing, Test & Measurement, Portable Devices
