DPM340
Digital Panel Meter, , 3-1/2 Digits, DC Voltage, 0mV to 200mV
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 330,870 |
| 5+ | kr 320,650 |
| 10+ | kr 313,710 |
Produktoplysninger
Produktoversigt

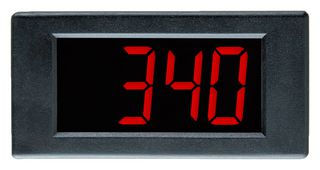

The DPM340 is a compact panel LED Voltmeter features a 3-1/2-digit LED with 8mm digit height and one-piece snap-in housing. With 200mVDC full scale readings, auto-zero, auto-polarity and user selectable decimal points and this meter can be used in 4.75 to 5.25V operation. It is a popular part, normally stocked in high quantity and suitable for new designs. It is ideally suited for applications where a bright display under all conditions is required. It is fitted with high efficiency, very low current LEDs and is housed in a carrier with integral snap-in bezel.
- Programmable decimal points
- Very low current consumption
- 3 Samples/sec rate
Applikationer
Industrial, Clock & Timing, Test & Measurement, Portable Devices
Tekniske specifikationer
3-1/2
0mV to 200mV
18mm
4.75V
0°C
-
DC Voltage
8mm
38mm
5.25V
50°C
No SVHC (07-Nov-2024)
Tekniske dokumenter (1)
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Great Britain
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
