DPM 400
Digital Panel Meter, 3-1/2 Digits, DC Voltage, 0mV to 200mV
Brug for flere?
| Antal | |
|---|---|
| 1+ | kr 330,870 |
| 5+ | kr 320,650 |
| 10+ | kr 313,710 |
Produktoplysninger
Produktoversigt

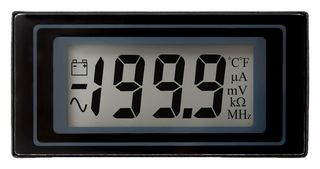

The DPM 400 is a 3-1/2-digit compact panel LCD Voltmeter with 10mm digit height, annunciators and a low-profile bezel for mounting. With a 200mVDC full scale reading, auto-zero and auto-polarity this meter plugs directly into a 28-way DIL socket or can be panel mounted using the snap-in bezel and window supplied. It is a popular part and is suitable for new designs. It is ideally suited to low or high volume applications. The low profile bezel incorporates a flat reverse printed window, giving a superb appearance that cannot be damaged or removed by contact.
- Programmable decimal points
- Single rail version
- 3 Samples/sec rate
Applikationer
Industrial, Clock & Timing, Test & Measurement, Portable Devices, Automotive
Tekniske specifikationer
3-1/2
0mV to 200mV
22.2mm
7V
0°C
-
DC Voltage
10mm
45mm
14V
50°C
No SVHC (07-Nov-2024)
Tekniske dokumenter (1)
Alternativer til DPM 400
2 produkter blev fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Great Britain
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
RoHS
Certifikater om produktoverholdelse
