0031320

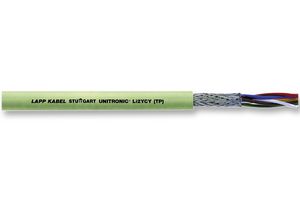

Multipair Cable, Li2YCY (TP), Screened, 2 Pair, 0.22 mm², 164 ft, 50 m
Billedet er vejledende. Se produktspecifikationen.
ProducentLAPP
Producentens varenummer0031320
Varenummer5412572
ProduktsortimentUNITRONIC Li2YCY TP Series
Teknisk datablad
Produceres ikke længere
Produktoplysninger
ProducentLAPP
Producentens varenummer0031320
Varenummer5412572
ProduktsortimentUNITRONIC Li2YCY TP Series
Teknisk datablad
Cable ShieldingScreened
No. of Pairs2 Pair
Wire Gauge-
Conductor Area CSA0.22mm²
Reel Length (Imperial)164ft
Reel Length (Metric)50m
Jacket ColourGrey
No. of Max Strands x Strand Size7 x 0.2mm
Voltage Rating250V
Jacket MaterialPVC
Conductor MaterialCopper
External Diameter6.5mm
Product RangeUNITRONIC Li2YCY TP Series
Alternativer til 0031320
1 produkt fundet
Produktoversigt
The 0031320 is a screened Data Transmission Cable with low capacitance of data system at 10Mbps transmission rate and is qualified for the serial interfaces RS422 and RS485. It can be used as signal, control and measuring cable as well as transmission of low, sensitive signals and high bit rate. The cable is designed for fixed installation in dry and damp interiors and for conditional flexible use. It can be also used for solderless connections.
- CPR: Not Yet Qualified
- Special Polyolefin-based Compound Insulation
- DIN 47100 Core Identification Code
- Braiding with Tinned Copper Wires Screen
- <gt/>5GΩ x km Specific Insulation Resistance
- Approximately 0.65mH/km Inductivity
Applikationer
Communications & Networking, Test & Measurement, Signal Processing
Tekniske specifikationer
Cable Shielding
Screened
Wire Gauge
-
Reel Length (Imperial)
164ft
Jacket Colour
Grey
Voltage Rating
250V
Conductor Material
Copper
Product Range
UNITRONIC Li2YCY TP Series
No. of Pairs
2 Pair
Conductor Area CSA
0.22mm²
Reel Length (Metric)
50m
No. of Max Strands x Strand Size
7 x 0.2mm
Jacket Material
PVC
External Diameter
6.5mm
Tekniske dokumenter (1)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Germany
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Germany
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85444995
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.041
