12 12 06
Wire Stripper, Precision, 26-10 AWG / 0.14-6mm² Insulation Wires
3 Du kan reservere fra lager nu
| Antal | |
|---|---|
| 1+ | kr 1.172,000 |
| 3+ | kr 1.149,000 |
Produktoplysninger
Produktoversigt

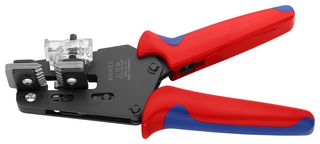

12 12 06 is a precision insulation stripper with adapted blade. Form-fit stripping of difficult-to-remove insulating materials made of PTFE, silicone, Radox®, Polyimide Film, and rubber, multi-layer too. A second pair of blades holds the remaining insulation reliably in place. Replaceable shaped blade adapted precisely to the respective conductor cross-section. Two pairs of blades cut parallel into the insulation, and remove it with a separating movement. The length stop can be easily adjusted by pressing and sliding for accurately repeated wire stripping.
- With length stop for constant stripping length during repetitive work
- Pliers body is made of steel, blade is made of special tool steel, oil-hardened
- Handles with multi-component grips
- Wire stripping capacities 0.14-0.25 / 0.75 / 1.5 / 2.5 / 4.0 / 6.0mm²
- Body: steel other material type, burnished other surface finish
- Dimension is 195 x 73 x 19mm
Advarsler
Do no use on live circuits. Always switch off power. Always wear approved eye protection.
Noter
Do no use on live circuits. Always switch off power. Always wear approved eye protection.
Tekniske specifikationer
26AWG to 10AWG
Insulation Wires like PTFE, Silicone, Radox, Polyimide Film & Rubber
No SVHC (17-Dec-2015)
0.14mm² to 6mm²
-
Tekniske dokumenter (2)
Alternativer til 12 12 06
1 produkt fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Germany
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Certifikater om produktoverholdelse
