E5382B
Logic Analyser Probe, 17 Channels, 250 mV, 1.5 Gbps, Flying Leads

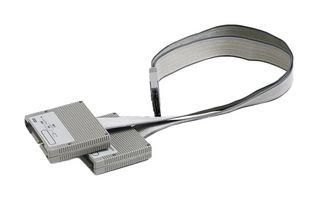

Billedet er vejledende. Se produktspecifikationen.
Kan bestilles
Producentens standard leveringstid: 12 uge(r)
| Antal | |
|---|---|
| 1+ | kr 34.178,000 |
Pris for:Each
Minimum: 1
Flere: 1
kr 34.178,00 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentKEYSIGHT TECHNOLOGIES
Producentens varenummerE5382B
Varenummer4338615
Teknisk datablad
No. of Channels17 Channels (16 Data + 1 Clock)
Data Rate Max1.5Gbps
Signal Amplitude Min250mV
Input Capacitance1.3pF
Connection to Target BoardFlying Leads
For Use WithU4164A, U4154A/B, 16850A, 16962A, 16951B, 16950A/B, 16760A, 16756A Series Portable Logic Analysers
Product Range-
SVHCNo SVHC (14-Jun-2023)
Produktoversigt
E5382B is a single-ended flying leads with 90-pin cable connector. E5382B flying lead set is the tool to use when probing points are dispersed on your target or a probing point was not designed in. This probe comes with a variety of high performance accessories that can be used to connect to designed in connectors or solder attached to surface mount components, vias, pads, traces and other PC board features. This probe that can be used with any Keysight logic analyser with a 90-pin cable connector.
- 17 channels: 16 single-ended data, 1 single-ended or differential clock
- 1.3pF equivalent load capacitance
- 1.5Gb/s maximum data rate
- Measure signals with as little as 250mV p-p signal amplitude
- Acquire signals from randomly located parts in your target
- Compatible with a wide variety of accessories to connect to IC pins, traces, pads, vias and etc
- Compatible with logic analysers with 90-pin cable connectors
Tekniske specifikationer
No. of Channels
17 Channels (16 Data + 1 Clock)
Signal Amplitude Min
250mV
Connection to Target Board
Flying Leads
Product Range
-
Data Rate Max
1.5Gbps
Input Capacitance
1.3pF
For Use With
U4164A, U4154A/B, 16850A, 16962A, 16951B, 16950A/B, 16760A, 16756A Series Portable Logic Analysers
SVHC
No SVHC (14-Jun-2023)
Tekniske dokumenter (1)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Malaysia
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Malaysia
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Mere information følger
SVHC:No SVHC (14-Jun-2023)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.70715
