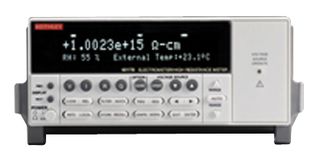

6517B/E
Electrometer, High Resistance, Average, Auto, Manual Range, 200 V, 20 mA, 5.5 Digit
- Producent:
- KEITHLEY KEITHLEY
- Producentens varenummer:
- 6517B/E
- Varenummer:
- 2074765
- Teknisk datablad:
- 6517B/E Datasheet
Produktoplysninger
Vil du at se lignende produkter? Vælg blot de ønskede attributter nedenfor og tryk på knappen ×
- :
- 5.5
- :
- GPIB, RS232, USB
- :
- -
- :
- -
- :
- 200000Gohm
- :
- -
- :
- 20mA
- :
- 200V
- :
- 1 Year
- :
- DC Current, DC Voltage, Resistance, Temperature
- :
- EU, SWISS, UK
Tekniske dokumenter (4)
Produktoversigt
Keithley's 5½-digit Model 6517B Electrometer/High Resistance Meter offers accuracy and sensitivity specifications unmatched by any other meter of this type. It also offers a variety of features that simplifies measuring high resistances and the resistivity of insulating materials. With reading rates of up to 425 readings/ second, the Model 6517B is also significantly faster than competitive electrometers, so it offers a quick, easy way to measure low-level currents.
- 1fA - 20mA current measurement range
- <20µV burden voltage on lowest current ranges
- 200Tohm input impedance
- <3fA bias current
- Up to 425 rdgs/s
- 0.75fA p-p noise
- Built-in ±1kV voltage source
- Unique voltage reversal method for high resistance measurements
Applikationer
Industrial, Maintenance & Repair, Test & Measurement, Medical
Indhold
Electrometer/high resistance meter, Low noise triax cable, High voltage dual test leads, Thermocouple bead probe and Interlock connector.
Fodnoter
In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration service page for more details.
1 På lager
1 på lager til levering næste dag (Liege lager)
Flere produkter på lager i ugen, der starter den 02-11-20
