2230-30-1..

Bench Power Supply, Programmable, 3 Output, 0 V, 30 V, 0 A, 5 A

2230-30-1.. - Bench Power Supply, Programmable, 3 Output, 0 V, 30 V, 0 A, 5 A

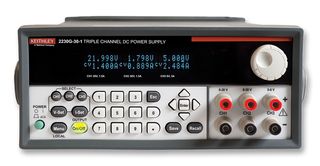

Billedet er vejledende. Se produktspecifikationen.

Producentens varenummer:
2230-30-1..
Varenummer:
2770041
Produktsortiment
2200 Series
Teknisk datablad:
2230-30-1..   Datasheet
Se alle tekniske dokumenter

Produktoplysninger

Vil du at se lignende produkter? Vælg blot de ønskede attributter nedenfor og tryk på knappen ×


:
Programmable

:
3 Output

:
0V

:
30V

:
0A

:
5A

:
120W

:
120VAC

:
240VAC

:
3 Years

:
2200 Series

:
EU, SWISS, UK

Find lignende produkter Vælg og tilpas attributterne ovenfor for at finde lignende produkter.

Tekniske dokumenter (2)

Produktoversigt

The 2230-30-1 from Keithley is a programmable triple channel DC power supply. It combines 3 channels of output power to cost effectively characterize and test wide range of devices, circuit boards, modules and products that require more than one power source. The model 2230-30-1 includes two 30V/1.5A channels and adds a 6V channel with up to 5A output for powering digital circuit. It has 1mV/1mA setting resolution with ±0.03% + 10mV/±0.1% + 5mA setting accuracy, 1mV/1mA meter resolution with ±0.03% + 10mV/±0.1% + 5mA meter accuracy. This multichannel power supply offers an excellent combination of performance, versatility and ease of use to maximize the information from characterization or test as quickly and as easily as possible. It complies to European union EMC directive, USA: nationally recognized testing laboratory listing UL61010-1-2004, Canada: CAN/CSA C22.2 No. 61010-1 2004. It is used in circuit design, electrical engineering student labs, materials research and automated tes
  • USB interface
  • All channels are independently controlled and have isolated outputs for maximum flexibility
  • Accurate power delivery to the load, maximum power of 120W, 0° to +40°C operating temperature
  • All channels have remote sensing to ensure that programmed voltage is accurately applied to load
  • Two 30V channels can be combine in series to double output voltage or parallel to double output current
  • 0.03% basic voltage output accuracy and 0.1% current accuracy ensure quality test data
  • Switchable between 120VAC or 240VAC AC input, 450VA power consumption
  • Voltage and current outputs for all channels are displayed simultaneously
  • < 0.01% + 3mV/< 0.01% + 3mA load regulation, < 0.01% + 3mV/< 0.1% + 3mA line regulation
  • 105.3mm x 241.8mm x 384.0mm (H x W x D) (protective boots and handle installed), 8.5Kg net weight

Applikationer

Electrical, Automated Test Equipment

Indhold

2230-30-1 DC power supply, CS-1655-15 rear panel mating, Connector, Multi channel DC power supplies, Documentation, Driver CD.

Fodnoter

In addition, we offer calibration services for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit the calibration service page for more details.

Advarsler

Unauthorized use of the factory test port could damage this product.
