Billedet er vejledende. Se produktspecifikationen.
ProducentITT CANNON
Producentens varenummerDL5-260RW6B
Varenummer2677957
ProduktsortimentITT Cannon DL
Teknisk datablad
23 På Lager
Brug for flere?
EKSPRESLEVERING næste hverdag
Bestil inden kl. 17:00
GRATIS Standard levering tilgængelig
for ordrer over kr 0,00
Nøjagtige leveringstider vil blive beregnet i forbindelse med betaling
Antal | |
---|---|
1+ | kr 2.321,000 |
5+ | kr 2.292,000 |
10+ | kr 2.264,000 |
25+ | kr 2.219,000 |
Pris for:Each
Minimum: 1
Flere: 1
kr 2.321,00 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentITT CANNON
Producentens varenummerDL5-260RW6B
Varenummer2677957
ProduktsortimentITT Cannon DL
Teknisk datablad
Product RangeITT Cannon DL
No. of Contacts260Contacts
Card Edge / Backplane Connector TypeBackplane
Pitch Spacing2.54mm
Contact Termination TypeWire Wrap
No. of Rows10Rows
Row Pitch2.54mm
Contact MaterialCopper Alloy
Contact PlatingGold Plated Contacts
SVHCNo SVHC (20-Jun-2016)
Produktoversigt

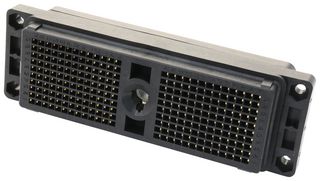

The DL5-260RW6B is a 260-position 10-row Card Edge Receptacle with gold-plated copper alloy square post contacts and a plastic body. It is suitable for through-hole mounting pattern.
- 5A Maximum current rating
- 1200VACrms Dielectric withstanding voltage
- 15mΩ Maximum contact resistance
- 5000MΩ Minimum insulation resistance
- -55 to 105°C Operating temperature range
Applikationer
Medical, Test & Measurement, Commercial, Automation & Process Control, Computers & Computer Peripherals, Avionics, Robotics, Lighting, Communications & Networking, Automotive
Tekniske specifikationer
Product Range
ITT Cannon DL
Card Edge / Backplane Connector Type
Backplane
Gender
Receptacle
No. of Rows
10Rows
Contact Material
Copper Alloy
SVHC
No SVHC (20-Jun-2016)
No. of Contacts
260Contacts
Pitch Spacing
2.54mm
Contact Termination Type
Wire Wrap
Row Pitch
2.54mm
Contact Plating
Gold Plated Contacts
Tekniske dokumenter (1)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:China
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (20-Jun-2016)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.1435
