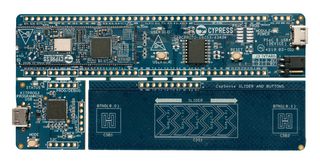

CY8CPROTO-062S3-4343W

CY8CPROTO-062S3-4343W is a PSoC 62S3 Wi-Fi BT prototyping kit. The PSoC 62S3 Wi-Fi BT Kit enables you to evaluate and develop your applications using the PSoC 62 Series MCU and CYW4343W WICED Wi-Fi/BT combo device. PSoC 6 MCU is Cypress’ latest, ultra-low-power PSoC specifically designed for wearables and IoT products. PSoC 6 MCU is a true programmable embedded system-on-chip, integrating a 150MHz ARM® Cortex®-M4 as the primary application processor, a 100MHz ARM Cortex®-M0+ that supports low-power operations, up to 2MB Flash and 1MB SRAM, Secure Digital Host Controller (SDHC) supporting SD/SDIO/eMMC interfaces, CapSense® touch-sensing, and programmable analogue and digital peripherals that allow higher flexibility, in-field tuning of the design, and faster time-to-market.

• PSoC™ 62 MCU with 512KB of flash memory, 256KB of SRAM memory
• LBEE5KL1DX module based on the CYW4343W combo device (802.11b/g/n, single-band 2.4GHz + Bluetooth)
• Industry-leading CAPSENSE™ with touch buttons and slider
• On-board debugger/programmer with KitProg3
• 512Mbit quad-SPI NOR flash
• KitProg3 on-board SWD programmer/debugger, USB-UART and USB-I2C bridge functionality
• Micro-B connector for PSoC 6 MCU USB device interface
• 1.8V and 3.3V operation of PSoC 6 MCU is supported
• One user LED, one user button, and a reset button for PSoC 6 MCU
• One mode selection button and one status LED for KitProg3

Indhold

PSoC 62S3 Wi-Fi BT prototyping board, USB type-A to micro-B cable, Quick start guide.
