ProducentHIRSCHMANN TEST AND MEASUREMENT
Producentens varenummer930726104
Varenummer1256508
ProduktsortimentBUELA 20 K Series
Teknisk datablad
106 På Lager
100 Du kan reservere fra lager nu
EKSPRESLEVERING næste hverdag
Bestil inden kl. 17:00
GRATIS Standard levering tilgængelig
for ordrer over kr 580,00
Nøjagtige leveringstider vil blive beregnet i forbindelse med betaling
Antal | |
---|---|
1+ | kr 59,370 |
5+ | kr 53,980 |
10+ | kr 50,910 |
Pris for:Pack of 5
Minimum: 1
Flere: 1
kr 59,37 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentHIRSCHMANN TEST AND MEASUREMENT
Producentens varenummer930726104
Varenummer1256508
ProduktsortimentBUELA 20 K Series
Teknisk datablad
Connector MountingCable Mount
Current Rating16A
Voltage Rating60V
Contact PlatingNickel Plated Contacts
Connector ColourGreen
Contact MaterialBrass
Contact Termination TypeScrew
Product RangeBUELA 20 K Series
SVHCNo SVHC (23-Jan-2024)
Produktoversigt

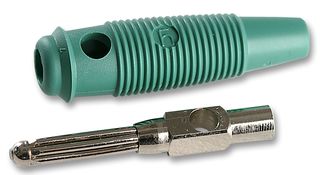

Multiple-spring wire plug, shatter-proof, flexible insulated sleeve with transverse hole. The tapering sleeve end also serves as kinking protection for the lead.Screw connection up to maximum cable cross-section of 1.5 mm². Nickel-plated brass contact material.
- 4 mm system
- Plugs
- Screw terminal connection
- 30 VAC / 60 VDC rated voltage (1)
- O (3) measurement cat. acc. to IEC 61010
- 16 A rated current (1)
- PVC-P housing material
- (1) for normal environmental conditions -5°C to +40°C
- (3) without rated measurement category, for other circuits that are not directly connected to mains
Applikationer
Industrial, Test & Measurement
Tekniske specifikationer
Gender
Plug
Current Rating
16A
Contact Plating
Nickel Plated Contacts
Contact Material
Brass
Product Range
BUELA 20 K Series
Connector Mounting
Cable Mount
Voltage Rating
60V
Connector Colour
Green
Contact Termination Type
Screw
SVHC
No SVHC (23-Jan-2024)
Tekniske dokumenter (1)
Alternativer til 930726104
2 produkter blev fundet
Tilknyttede produkter
4 produkter blev fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Germany
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Germany
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85366990
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (23-Jan-2024)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.0347
