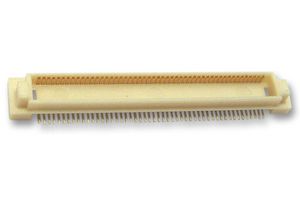

FX8C-140P-SV6(91)

The FX8C series from Hirose are surface mount, single connected vertical board to board headers with 0.6mm pitch spacing. These connectors have built-in guide ribs and chamfer which allows for ±0.6mm of misalignment and ensures easy mating.

• Stacking height of mating connector is 11mm
• SMT coplanarity
• 140 contacts
• Rated voltage of 100VAC and rated current of 0.4A
• Operating temperature range from -55°C to 85°C
• Phosphor bronze contacts with gold plating
• Flammability rating meets UL94 V-0, light brown colour polyphenylene sulphide (PPS) insulator
• Misinsertion prevention
• Maximum contact resistance of 80Mohm
• Mating cycles is 50

Applikationer

Industrial
