Udskriv side

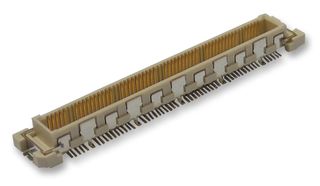

Billedet er vejledende. Se produktspecifikationen.
ProducentHIROSE / HRS
Producentens varenummerFX10A-168P-SV1(71)
Varenummer1798403
ProduktsortimentFunctionMax FX10
Også kendt som570-0144-2-71
Teknisk datablad
1.533 På Lager
Brug for flere?
EKSPRESLEVERING næste hverdag
Bestil inden kl. 17:00
GRATIS Standard levering tilgængelig
for ordrer over kr 580,00
Nøjagtige leveringstider vil blive beregnet i forbindelse med betaling
Antal | |
---|---|
1+ | kr 46,050 |
10+ | kr 29,150 |
100+ | kr 27,430 |
250+ | kr 24,220 |
500+ | kr 23,170 |
1000+ | kr 22,720 |
Pris for:Each
Minimum: 1
Flere: 1
kr 46,05 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentHIROSE / HRS
Producentens varenummerFX10A-168P-SV1(71)
Varenummer1798403
ProduktsortimentFunctionMax FX10
Også kendt som570-0144-2-71
Teknisk datablad
Mezzanine Connector TypeHeader
Pitch Spacing0.5mm
No. of Rows2Rows
No. of Contacts168Contacts
Connector MountingSurface Mount
Contact MaterialPhosphor Bronze
Contact PlatingGold Plated Contacts
Product RangeFunctionMax FX10
SVHCNo SVHC (23-Jan-2024)
Produktoversigt
The FX10 series Stacking Connector is electrical interface for the OIF 100G Long-Haul DWDM transmission module (MSA-100GLH). The signal and ground contacts are arranged in a 10:1 ratio. The 0.5mm signal contact pitch provides a smaller overall connector, using less mounting area on the board. The space provided by the ground plate removal has been filled with additional signal contacts.
- Improved transmission efficiency between boards
- Suited to high-density applications
- With guideposts
- Without ground plate
Applikationer
Industrial
Tekniske specifikationer
Mezzanine Connector Type
Header
No. of Rows
2Rows
Connector Mounting
Surface Mount
Contact Plating
Gold Plated Contacts
SVHC
No SVHC (23-Jan-2024)
Pitch Spacing
0.5mm
No. of Contacts
168Contacts
Contact Material
Phosphor Bronze
Product Range
FunctionMax FX10
Tekniske dokumenter (3)
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Indonesia
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Indonesia
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:85366930
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Ja
RoHS
SVHC:No SVHC (23-Jan-2024)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):.001754
