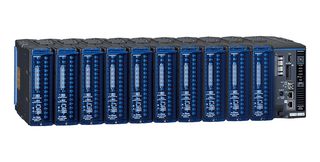

Billedet er vejledende. Se produktspecifikationen.
Kan bestilles
Kontakt mig, når varen er på lager
Antal | |
---|---|
1+ | kr 18.645,480 |
Pris for:Each
Minimum: 1
Flere: 1
kr 18.645,48 (ekskl. Moms)
Tilføj varenr. / Linjenote
Tilføjet til din ordrebekræftelse, faktura og følgeseddel kun for denne ordre.
Dette antal vil blive tilføjet til ordrebekræftelsen, faktura, følgeseddel, webbekræftelses-e-mail og produktetiket.
Produktoplysninger
ProducentHIOKI
Producentens varenummerM7100
Varenummer4667091
Teknisk datablad
Product TypeVoltage/Temperature Module
Sampling Rate-
Resolution (Bits)18bit
No. of Input Channels15Channels
No. of Output Channels-
No. of I/O's-
Supply Voltage Range10mV to 100V
Operating Temperature Range-10°C to +50°C
For Use WithHioki LR8101/LR8102 Data Loggers
Product Range-
SVHCNo SVHC (21-Jan-2025)
Produktoversigt
M7100 is a voltage/temperature module. This highly insulated module features high-speed sampling to safely conduct charge/discharge testing of increasingly high-voltage batteries. The M7100 can measure voltage and temperature across 15 channels at a sampling rate of 10ms. It is compatible with LR8101 (standard), LR8102 (advanced) data logger. Easy expandability ensures you’ll be ready when you wish to evaluate future high-voltage systems that have even more battery cells.
- For 600V to 1500V battery packs
- High-precision measurement of cell voltage
- Ideal for capturing data from high-voltage battery pack cells
- Terminal-to-ground voltage is 1500VDC (CAT II) insulation
- EN IEC 61010 safety standard-compliant
- Operating temperature range from -10°C to 50°C
- M3 screw type terminal block (2 terminals per channel), equipped with terminal block cover
- 300VDC maximum voltage between the channels, ±100VDC maximum input voltage
- Maximum rated voltage between the modules are 1500VDC, 1000VAC
- Dimension is 53mm W × 166mm H × 263mm D
Indhold
Voltage/temperature module, Instruction manual ×1.
Tekniske specifikationer
Product Type
Voltage/Temperature Module
Resolution (Bits)
18bit
No. of Output Channels
-
Supply Voltage Range
10mV to 100V
For Use With
Hioki LR8101/LR8102 Data Loggers
SVHC
No SVHC (21-Jan-2025)
Sampling Rate
-
No. of Input Channels
15Channels
No. of I/O's
-
Operating Temperature Range
-10°C to +50°C
Product Range
-
Tekniske dokumenter (1)
Tilknyttede produkter
1 produkt fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Japan
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Japan
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:90309000
US ECCN:EAR99
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Mere information følger
SVHC:No SVHC (21-Jan-2025)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):1.74
