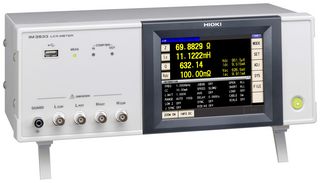

IM3533

IM3533 is a LCR meter suitable for R&D applications. It is the Hioki’s first LCR meters to offer turn ratio, mutual inductance and inductance difference measurements of transformers and coils, and are integrated with an internal DC bias to facilitate HDMI compliance testing.

• Measurement range from 100mohm to 100Mohm, 10 ranges (all parameters defined in terms of Z)
• Measurement frequency range from 1mHz to 200KHz
• Built-in low impedance high precision mode effective for testing low inductance
• Rapid 2msec test time
• 5.7-inch touch-screen colour TFT, display can be set to ON/OFF
• DC bias measurement, temperature compensation, comparator, panel loading/saving, memory function
• EXT I/O (handler), USB communication (high-speed), USB memory interfaces
• Power supply range from 100 to 240VAC, 50/60Hz, 50VA maximum
• Dimension is 330mm W x119mm H x 168mm D

Indhold

LCR meter, Power cord x 1, Instruction manual x 1, CD-R (Includes PC commands and sample software) x 1.

Noter

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
