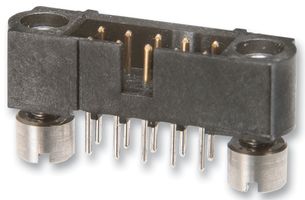

M80-5100642
Pin Header, Dual in Line, Wire-to-Board, 2 mm, 2 Rows, 6 Contacts, Through Hole Straight
128 Du kan reservere fra lager nu
| Antal | |
|---|---|
| 1+ | kr 101,560 |
| 10+ | kr 79,990 |
| 25+ | kr 74,850 |
| 100+ | kr 69,700 |
| 250+ | kr 68,280 |
Produktoplysninger
Produktoversigt
The M80-5100642 is a 6-contact male Datamate J-Tek DIL PCB Plug with black UL94V-0 PPS housing, gold plated phosphor bronze contacts and 100% tin over nickel plated termination. The M80 series connector has Jackscrews (with 3.5mm board mount), 3mm PC tail, vertical connector orientation, PC tail/through board connection type and M2 thread size. The connector is intended for use as a low voltage connector in high packing density electronic equipment. The connector is polarised to prevent mismatching and can be produced with a latching feature jackscrew (J-Tek) format, with or without board mounting.
- 3A (at 25°C), 2.2A (at 85°C) Current rating
- 800VAC/DC Working voltage
- 25mΩ Maximum contact resistance
- 100MΩ Minimum insulation resistance
- 500 operations Durability
Applikationer
Industrial
Tekniske specifikationer
Wire-to-Board
2Rows
Through Hole Straight
Shrouded
Gold Plated Contacts
No SVHC (21-Jan-2025)
2mm
6Contacts
Datamate J-Tek M80-5
Phosphor Bronze
PCB Header
Tekniske dokumenter (4)
Tilknyttede produkter
1 produkt fundet
Lovgivning og miljø
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Great Britain
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
RoHS
