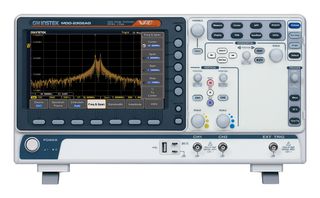

MDO-2302A
MSO / MDO Oscilloscope, MDO-2000A Series, 2 Channel, 300 MHz, 2 GSPS, 20 Mpts, 1.17 ns
Billedet er vejledende. Se produktspecifikationen.
ProducentGW INSTEK
Producentens varenummerMDO-2302A
Varenummer3577822
ProduktsortimentMDO-2000A Series
Teknisk datablad
Produceres ikke længere
Produktoplysninger
ProducentGW INSTEK
Producentens varenummerMDO-2302A
Varenummer3577822
ProduktsortimentMDO-2000A Series
Teknisk datablad
Product RangeMDO-2000A Series
Scope Channels2 Channel
Bandwidth300MHz
Sampling Rate2GSPS
Display Memory Depth20 Mpts
Calculated Rise Time1.17ns
Scope Display TypeWVGA TFT Colour
Kit ContentsMDO Equips w/ Spectrum Analyzer, GTP-300B-4, User Manual CD, Power Cord
Manufacturer Warranty3 Years
Plug Type-
SVHCNo SVHC (10-Jun-2022)
Produktoversigt
- 300MHz, 2-channel, digital storage oscilloscope with spectrum analyser
- Per Channel 20M memory depth and VPO waveform display technology
- Waveform update rate up to 120,000wfms/s
- 8 “ WVGA TFT LCD display
- Maximum 1M FFT provides higher frequency domain resolution measurements
- High, low and band pass filter functions
- 29,000 segmented memories and waveform search functions
- I2C/UART/CAN/LIN serial bus trigger and decoding function
- Data log function is able to track signal changes up to 1000 hours
- Network storage function and mask test function
Indhold
Digital storage oscilloscope, Power cord, Certificate of calibration, CD-ROM (with quick start guide, user manual, programming manual), Passive probe (one probe per channel).
Noter
Calibration services available for this product. Choose from a Standard Certificated Service or an internationally recognised UKAS accredited calibration. Visit our calibration page for more details.
Tekniske specifikationer
Product Range
MDO-2000A Series
Bandwidth
300MHz
Display Memory Depth
20 Mpts
Scope Display Type
WVGA TFT Colour
Manufacturer Warranty
3 Years
SVHC
No SVHC (10-Jun-2022)
Scope Channels
2 Channel
Sampling Rate
2GSPS
Calculated Rise Time
1.17ns
Kit Contents
MDO Equips w/ Spectrum Analyzer, GTP-300B-4, User Manual CD, Power Cord
Plug Type
-
Tekniske dokumenter (1)
Tilknyttede produkter
1 produkt fundet
Lovgivning og miljø
Oprindelsesland:
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Taiwan
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Det land, hvor den sidste væsentlige fremstillingsproces fandt stedOprindelsesland:Taiwan
Det land, hvor den sidste væsentlige fremstillingsproces fandt sted
Tarifnr.:90302000
US ECCN:3A992.g
EU ECCN:NLR
RoHS-kompatibel:Ja
RoHS
Kompatible med RoHS-phthalater:Mere information følger
SVHC:No SVHC (10-Jun-2022)
Download certifikat om produktoverholdelse
Certifikater om produktoverholdelse
Vægt (kg):1.814368
