FS150R12KT3BOSA1
IGBT Module, Six Pack [Full Bridge], 200 A, 1.7 V, 700 W, 125 °C, Module

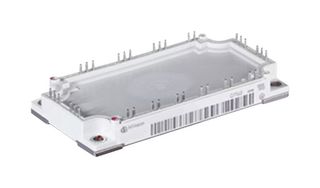

Image is for illustrative purposes only. Please refer to product description.
ManufacturerINFINEON
Manufacturer Part NoFS150R12KT3BOSA1
Order Code2726178
Product RangeEconoPACK 3
Also Known AsFS150R12KT3, SP000100440
Technical Datasheet
47 In Stock
Need more?
EXPRESS Next Day Delivery
Order before 5pm
FREE Standard Delivery
on orders kr 0.00 and over
Accurate delivery times will be calculated in Checkout
| Quantity | Price (ex VAT) |
|---|---|
| 1+ | kr 930.640 |
| 5+ | kr 930.490 |
| 10+ | kr 930.270 |
Price for:Each
Minimum: 1
Multiple: 1
kr 930.64 (ex VAT)
Enter Your Part No/Line Note
Added to your Order Confirmation, Invoice, and Dispatch note for this order only.
This number will be added to the Order Confirmation, Invoice, Dispatch note, Web confirmation Email and Product Label.
Product Information
ManufacturerINFINEON
Manufacturer Part NoFS150R12KT3BOSA1
Order Code2726178
Product RangeEconoPACK 3
Also Known AsFS150R12KT3, SP000100440
Technical Datasheet
Transistor PolarityN Channel
IGBT ConfigurationSix Pack [Full Bridge]
DC Collector Current200A
Continuous Collector Current200A
Collector Emitter Saturation Voltage Vce(on)1.7V
Collector Emitter Saturation Voltage1.7V
Power Dissipation Pd700W
Power Dissipation700W
Junction Temperature Tj Max125°C
Operating Temperature Max125°C
Collector Emitter Voltage V(br)ceo1.2kV
Transistor Case StyleModule
IGBT TerminationPress Fit
Collector Emitter Voltage Max1.2kV
IGBT TechnologyIGBT 3 [Trench/Field Stop]
Transistor MountingPanel
Product RangeEconoPACK 3
Product Overview
EconoPACK™ 3 with fast trench/fieldstop IGBT3 and emitter controlled high efficiency diode.
