BK1823A

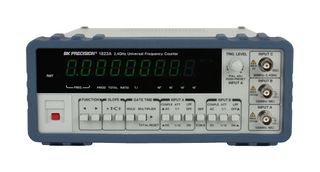

The BK1823A from B&K Precision is a 2.4GHz multifunction counter (frequency, period, totalize) with ratio frequency. The LED display can provide 9 digits of resolution using the internal 10s gate time. The high accuracy, sensitivity and versatility of this counter make it an extremely valuable instrument to scientists, engineers, experimenters and communications technicians. It covers a frequency range from 0.1Hz to 2.4GHz based on 10MHz time base T.C.O (temperature controlled oscillator). It comes with one year warranty.

• Frequency counter is microprocessor controlled
• Frequency ratio measurement function, time interval measurement, trigger level function
• External frequency standard input
• Time base stability is ±1PPM, best resolution is 1nHz
• 9 digit bright LED display
• Display hold, low pass filter, self-test
• Sensitivity: 250mV(0.1-1Hz), 30mV(1Hz-100MHz), 50mV(80-150MHz), 50mV(150MHz-2GHz), 60mV(2GHz-2.4GHz)
• 115/230V (50/60Hz) AC input
• RS232 remote interface
• Dimensions is 239mm x 89mm x 269mm (W x H x D), 2.5Kg weight

Indhold

BK1823A counter, User manual, BNC cable, Power cord, Spare fuse.

Noter

In addition, we have calibration services for this product (Europe Only). Visit our calibration service page to see details of what options are available.
