AES-ACC-U96-JTAG

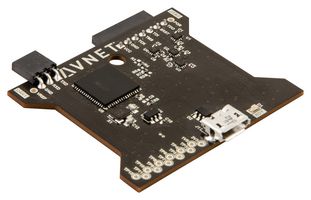

AES-ACC-U96-JTAG is an USB to JTAG/UART Pod for Ultra96 Zynq UltraScale+ ZU3EG development board. It is an inexpensive and convenient way to add both USB to UART and Xilinx USB to JTAG capability. With a single microUSB connection to the host, this pod provides the transceivers to communicate with both the UART and JTAG headers on Ultra96. This allows engineers to access a serial terminal and Xilinx JTAG tools for communication, debugging and simulation.

• High speed microUSB 2.0 connection
• Female JTAG header compatible with the Ultra96 JTAG male header
• Female UART header compatible with the Ultra96 UART male header

Indhold

Ultra96 USB-to-JTAG/UART pod, Quick start instructions.
