MAX32660-EVSYS#

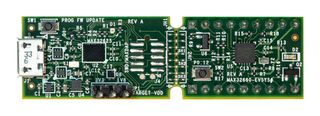

Evaluation system for the MAX32660 ultra-low power Arm Cortex-M4 with FPU-based microcontroller for wearable and IoT sensors. A MAX32625PICO-based debug adapter comes attached to the main board. It can be snapped free when programming is complete. The debug module supports an optional 10-pin Arm® Cortex® debug connector for DAPLink functionality. It is suitable for fitness monitors, industrial sensors, IoT, optical modules, portable medical devices, sports watches and wearable medical patches.

• Arm Cortex-M4F, 96MHz MAX32660 microcontroller
• 256KB flash memory, 96KB SRAM, 2X ( SPIs, I2C and UART)
• Breadboard compatible
• Integrated peripherals (red indicator LED, user pushbutton)
• MAX32625PICO-based debug adapter
• CMSIS-DAP SWD debugger
• Virtual UART console

Applikationer

Wearables, Sensing, IoT (Internet of Things), Medical

Noter

ADI products are only authorized (and sold) for use by the customer and are not to be resold or otherwise passed on to any third party
