MAX22514EVKIT#

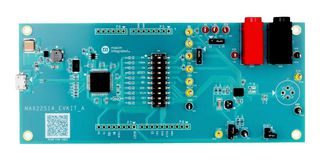

MAX22514EVKIT# is a MAX22514 evaluation kit (EV kit) that consists of the evaluation board and software. The EV kit is a fully assembled and tested circuit board that evaluates the MAX22514 IO-Link® device transceiver with integrated DC-DC buck regulator. The EV kit includes Windows®- compatible software that provides a graphical user interface (GUI) for exercising the features of the MAX22514. The EV kit is connected to a PC through a USB-A-to-micro-B cable.

• IO-Link-compliant device transceiver
• I/O and SPI interface terminals
• Arduino® Uno compatible connector
• Windows® 10-compatible software
• USB-PC connection
• Proven PCB layout
• Fully assembled and tested
